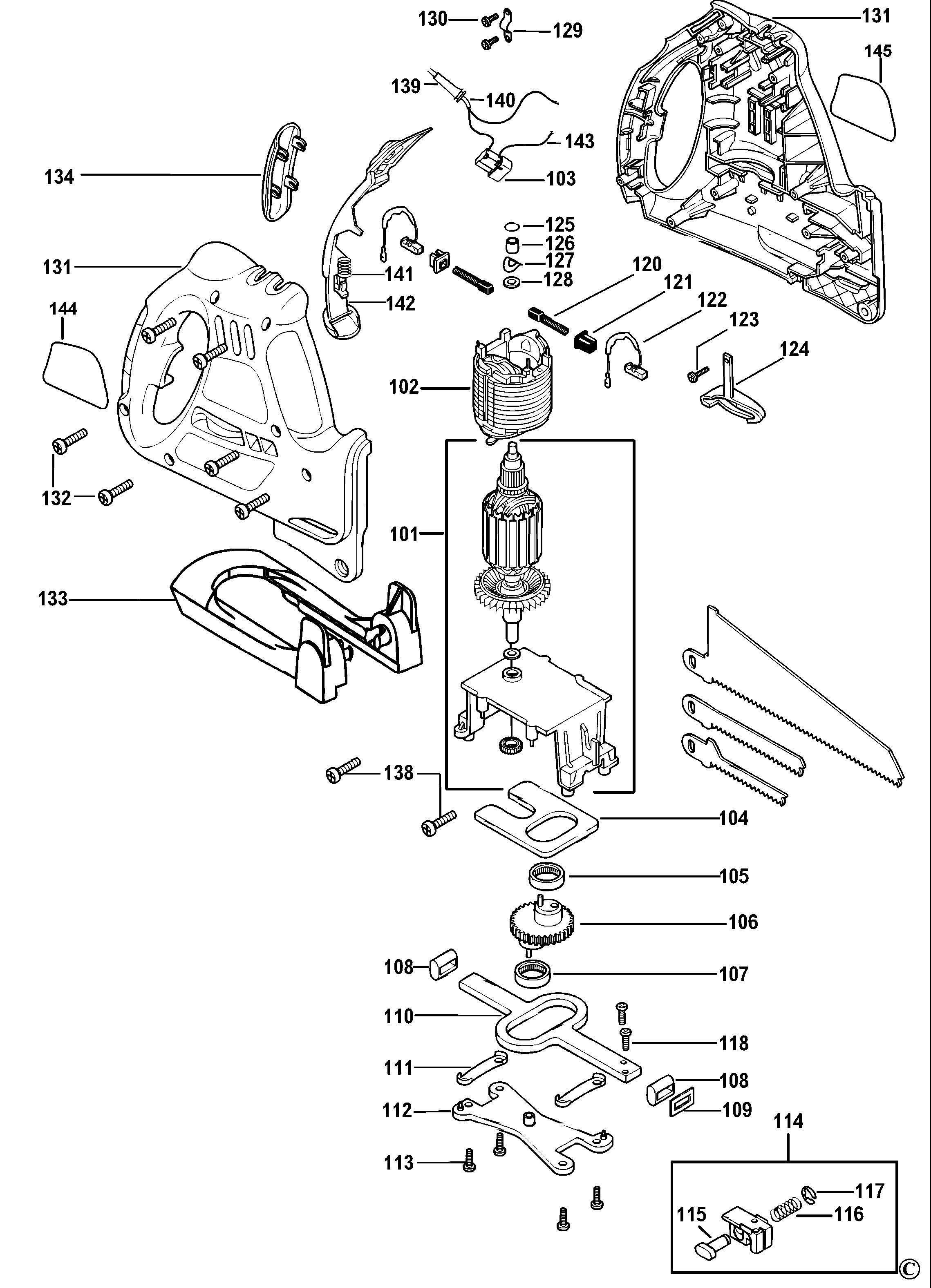

SC500 SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 103 | 571145-01 | 1 | SWITCH | XJ |  |
||
| 104 | 377372 | 1 | BALANCE WEIGHT | XJ |  |
||
| 105 | 377454 | 1 | BEARING | XJ | |
||
| 106 | 376450-04 | 1 | GEAR SA | XJ | |
||
| 107 | 377454 | 1 | BEARING | XJ | |
||
| 108 | 795680 | 2 | BEARING | XJ | |
||
| 109 | 795694 | 1 | SEAL | XJ | |
||
| 110 | 376449-00 | 1 | SHAFT SA | 109+110+114+118 | XJ | |
|
| 111 | 795647 | 2 | CLAMP | XJ | |
||
| 112 | 377389 | 1 | GEARCASE COVER | XJ | |
||
| 113 | 575946-00 | 4 | SCREW | XJ | |
||
| 114 | 377375-00 | 1 | CLAMP SA | XJ | |
||
| 115 | 571265-00 | 1 | LOCK PIN | XJ | |
||
| 116 | 368671 | 1 | SPRING | XJ | |
||
| 117 | 571181-00 | 1 | CLIP | XJ | |
||
| 118 | 577359-00 | 2 | SCREW | XJ | |
||
| 120 | 915068-01 | 2 | BRUSH & SPRING | SINGULAR | XJ | |
|
| 121 | 875735 | 2 | INSERT | XJ | |
||
| 122 | 583366-00 | 2 | BRUSHBOX & CHOKE | XJ | |
||
| 123 | 370748 | 1 | SCREW | NO.6X12.7 | XJ | |
|
| 124 | 571182-01 | 1 | LOCK BUTTON | XJ | |
||
| 125 | 583894-00 | 1 | O RING | XJ | |
||
| 126 | 330004-02 | 1 | BEARING NEEDLE | XJ | |
||
| 127 | 373296-00 | 1 | WASHER BOW | XJ | |
||
| 128 | 373295-01 | 1 | WASHER FIBRE | XJ | |
||
| 129 | 329301-00 | 1 | CORD CLAMP | XJ | |
||
| 130 | 370748 | 2 | SCREW | NO.6X12.7 | XJ | |
|
| 131 | 571147-02 | 1 | CLAMSHELL PAIR | XJ | |
||
| 132 | 375669 | 6 | SCREW | NO.6X19 | XJ | |
|
| 133 | 90594113 | 1 | SHOE | XJ | |
||
| 134 | 377452-01 | 1 | HANDLE | XJ | |
||
| 138 | 747329 | 2 | SCREW | NO.6X19 | XJ | |
|
| 139 | 770235 | 1 | PROTECTOR | XJ | |
||
| 140 | 372067-12 | 1 | CORDSET | XJ | |
||
| 141 | 575706-00 | 1 | SPRING | XJ | |
||
| 142 | 577775-01 | 1 | SWITCH LOCK OFF | XJ | |
||
| 143 | 573184-01 | 1 | LEAD SA | XJ | |
