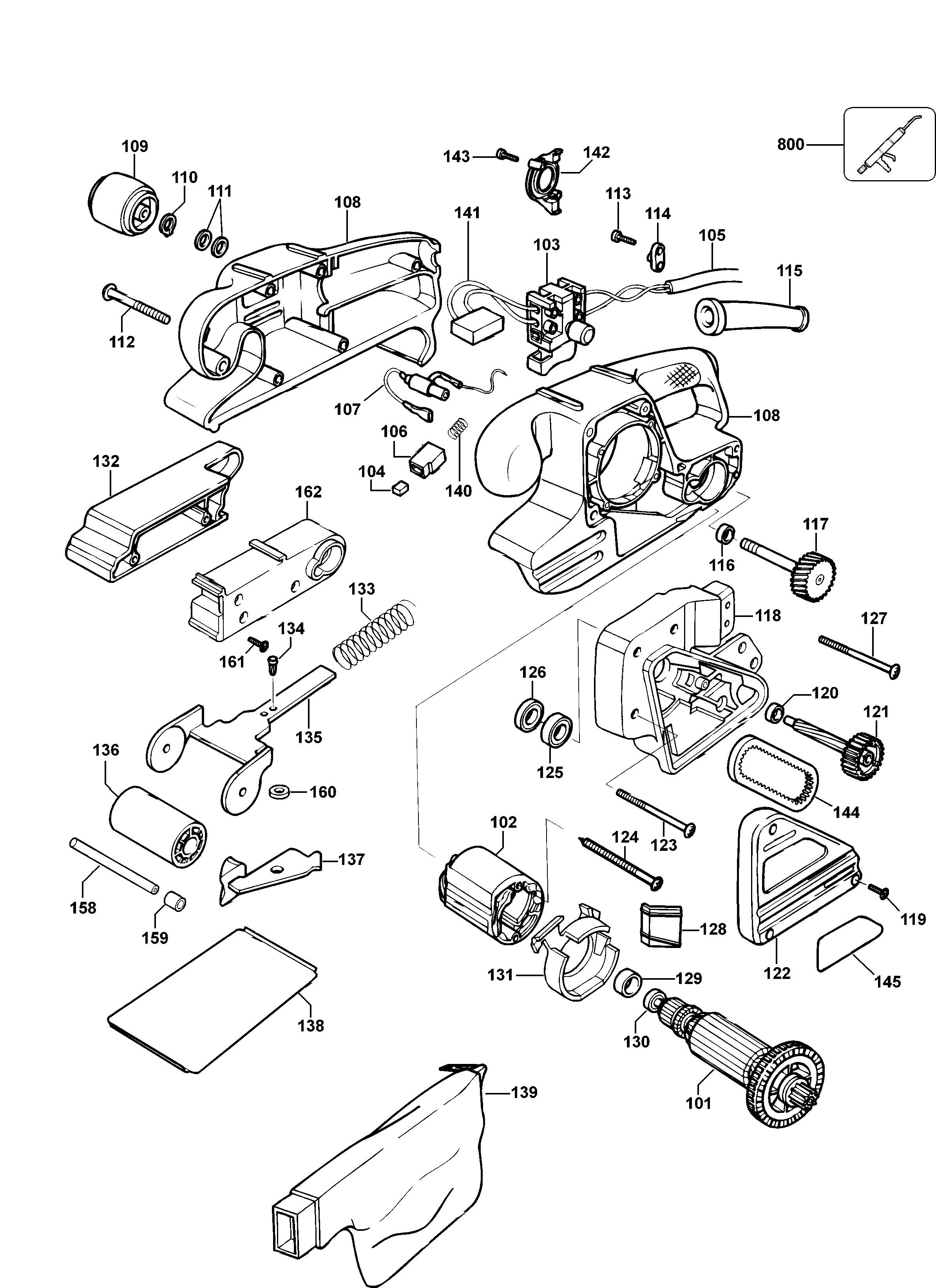

KA85 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 568271-00 | 1 | ARMATURE SA | GB |  |
||
| 102 | 568272-00 | 1 | FIELD | GB | |
||
| 103 | 568273-00 | 1 | SWITCH | GB | |
||
| 104 | 568274-00 | 2 | BRUSH | GB | |
||
| 105 | 568277-00 | 1 | CORDSET | GB | |
||
| 106 | 568278-00 | 2 | BRUSH HOLDER | GB | |
||
| 107 | 568279-00 | 2 | CHOKE SA | GB | |
||
| 108 | 568598-00 | 1 | CLAMSHELL | GB | |
||
| 109 | 568658-00 | 1 | ROLLER SA | GB | |
||
| 110 | 568282-00 | 1 | CIRCLIP | GB | |
||
| 111 | 568283-00 | 3 | WASHER | GB | |
||
| 112 | 568284-00 | 6 | SCREW | GB | |
||
| 113 | 568285-00 | 2 | SCREW | GB | |
||
| 114 | 568286-00 | 1 | CORD CLAMP | GB | |
||
| 115 | 568287-00 | 1 | CORD PROTECTOR | GB | |
||
| 116 | 568406-00 | 1 | BEARING | GB | |
||
| 117 | 568289-00 | 1 | SPINDLE & GEAR | GB | |
||
| 118 | 568290-00 | 1 | GEARCASE COVER | GB | |
||
| 119 | 568291-00 | 5 | SCREW | GB | |
||
| 120 | 568292-00 | 1 | BEARING | GB | |
||
| 121 | 568293-00 | 1 | SPINDLE & GEAR | GB | |
||
| 122 | 568294-00 | 1 | COVER BELT | GB | |
||
| 123 | 568295-00 | 3 | SCREW | GB | |
||
| 124 | 568296-00 | 2 | SCREW | GB | |
||
| 125 | 568297-00 | 1 | BEARING | 608 - 8 x 22 x 7 | GB | |
|
| 126 | 568298-00 | 1 | SLEEVE | GB | |
||
| 127 | 568299-00 | 2 | SCREW | GB | |
||
| 128 | 568300-00 | 1 | COVER | GB | |
||
| 129 | 568301-00 | 1 | SLEEVE | GB | |
||
| 130 | 568302-00 | 1 | BEARING | GB | |
||
| 131 | 568303-00 | 1 | COVER | GB | |
||
| 132 | 568304-00 | 1 | COVER | GB | |
||
| 133 | 568305-00 | 1 | SPRING | GB | |
||
| 134 | 568306-00 | 1 | RIVET | GB | |
||
| 135 | 568307-00 | 1 | FORK | GB | |
||
| 136 | 596553-00 | 1 | ROLLER | GB | |
||
| 137 | 568309-00 | 1 | LEVER | GB | |
||
| 138 | 568310-00 | 1 | PLATE | GB | |
||
| 139 | 568311-00 | 1 | DUST BAG SA | GB | |
||
| 140 | 568312-00 | 2 | SPRING | GB | |
||
| 141 | 568602-00 | 1 | CAPACITOR | GB | |
||
| 142 | 568314-00 | 1 | BRUSH COVER | GB | |
||
| 143 | 568315-00 | 2 | SCREW | GB | |
||
| 144 | 568316-00 | 1 | BELT | GB | |
||
| 145 | 568317-00 | 1 | LABEL | GB | |
||
| 158 | 568405-00 | 1 | SHAFT | GB | |
||
| 159 | 568406-00 | 2 | BEARING | GB | |
||
| 160 | 568407-00 | 1 | WASHER | GB | |
||
| 161 | 568408-00 | 3 | SCREW | GB | |
||
| 162 | 568409-00 | 1 | SUPPORT BRACKET | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB |  |
