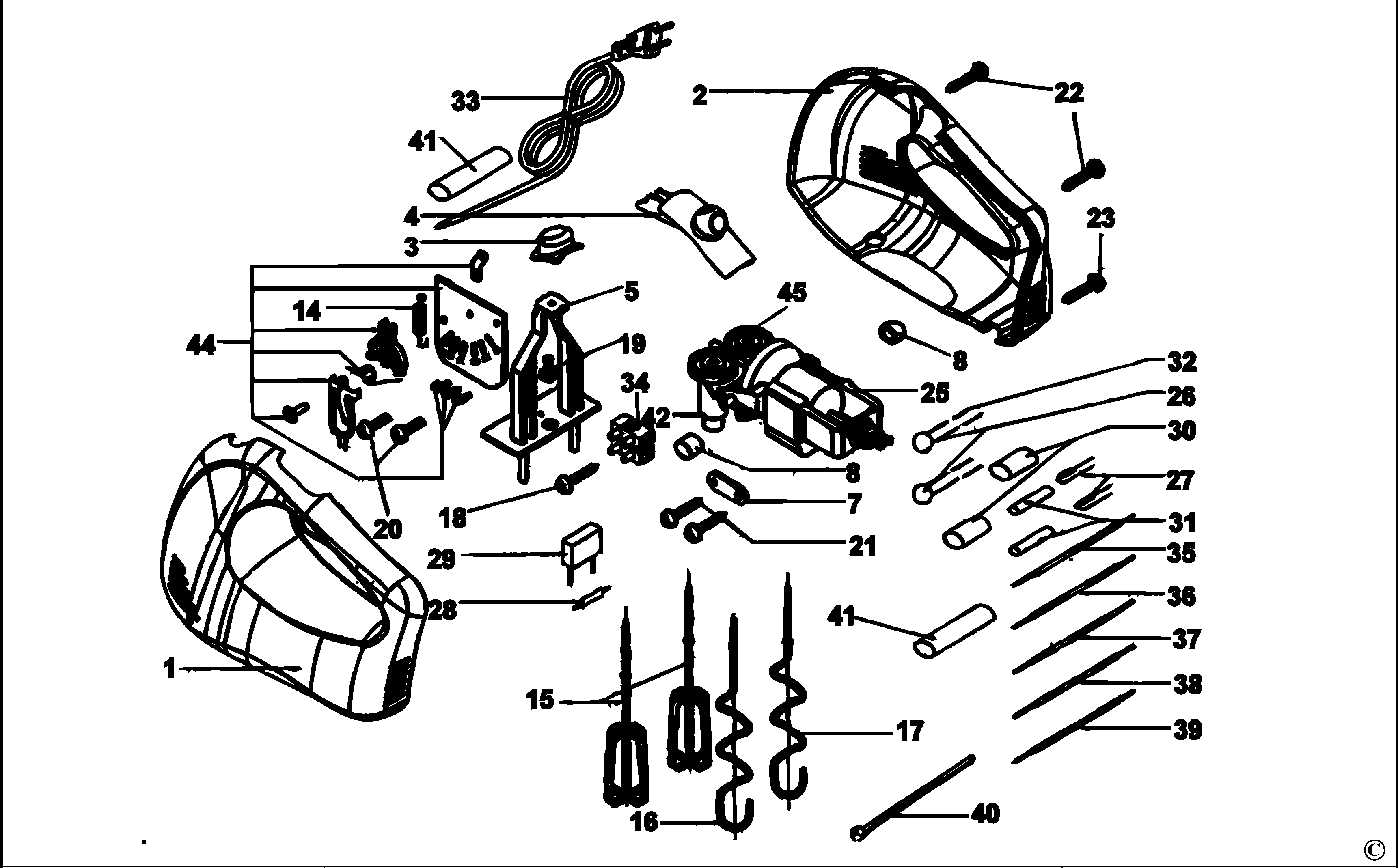

M150 MIXER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010038-01 | 1 | HOUSING LH | LEFT CABINET | AP-118201 | XJ | |
| 2 | 6010038-02 | 1 | HOUSING RH | RIGHT CABINET | AP-118202 | XJ | |
| 3 | 6010038-03 | 1 | BUTTON | RELEASE | AP-118203 | XJ | |
| 4 | 6010038-04 | 1 | BUTTON | SPEED | AP-118204 | XJ | |
| 5 | 6010038-05 | 1 | BRACKET | AP-118205 | XJ | ||
| 7 | 6010002-15 | 1 | CORD CLAMP | AP-089308 | XJ | ||
| 8 | 6010038-08 | 1 | SHOCK ABSORBER | AP-262811 | XJ | ||
| 14 | 6010038-14 | 1 | SPRING | RELEASE BOTTON SPRIN | AM-118207 | XJ | |
| 15 | 6010038-15 | 1 | WHISK | BEATER (LEFT/RIGHT) | AM-292901 | XJ |  |
| 16 | 6010038-16 | 1 | HOOK | DOUGH HOOK (LEFT) | AM-292902 | XJ | |
| 17 | 6010038-17 | 1 | HOOK | DOUGH HOOK (RIGHT) | AM-292903 | XJ | |
| 18 | 6010038-18 | 1 | SCREW | CD-S26A12 | XJ | ||
| 19 | 6010038-19 | 1 | SCREW | CD-S26B06 | XJ | ||
| 20 | 6010033-61 | 1 | SCREW | CD-S30B08 | XJ | ||
| 21 | 6010006-14 | 1 | SCREW | CD-S30J12 | XJ | ||
| 22 | 6010036-30 | 1 | SCREW | CD-S30A12 | XJ | ||
| 23 | 6010038-23 | 1 | SCREW | CD-Q30A12 | XJ | ||
| 25 | 6010038-25 | 1 | MOTOR 230V | ER-1182V1 | XJ | ||
| 26 | 6010002-25 | 1 | CAPACITOR | CERAMIC CAPACITOR | EC-C47225 | XJ | |
| 27 | 6010026-35 | 1 | CHOKE | CHOKE COIL | EI-190051 | XJ | |
| 28 | 6010002-30 | 1 | RESISTOR | EB-475G02 | XJ | ||
| 29 | 6010002-31 | 1 | CAPACITOR | METALLIZED | EC-M10427 | XJ | |
| 30 | 6010038-30 | 1 | TUBE | HEAT SHRINK | EJ-S1025U | XJ | |
| 31 | 6010038-31 | 1 | TUBE | HEAT SHRINK | EJ-S0420U | XJ | |
| 32 | 6010038-32 | 1 | TUBE | HEAT SHRINK | EJ-S0120U | XJ | |
| 33 | 6010002-29 | 1 | CORDSET | EG-J65CD1 | XJ | ||
| 34 | 6010002-35 | 1 | TERMINAL BLOCK | EM-F02202 | XJ | ||
| 35 | 6010038-35 | 1 | LEADWIRE | EL-A22206 | XJ | ||
| 36 | 6010038-36 | 1 | LEADWIRE | EL-A22618 | XJ | ||
| 37 | 6010038-37 | 1 | LEADWIRE | EL-A22118 | XJ | ||
| 38 | 6010038-38 | 1 | LEADWIRE | EL-A22018 | XJ | ||
| 39 | 6010038-38 | 1 | LEADWIRE | EL-A22018 | XJ | ||
| 40 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 41 | 6010038-41 | 1 | TUBE | FIBER GLASS TUBE | EJ-F7006U | XJ | |
| 42 | 6010038-42 | 1 | CIRCLIP | M150-42 | XJ | ||
| 44 | 6010038-44 | 1 | SWITCH SA | M150-44 | XJ | ||
| 45 | 6010038-45 | 1 | GEAR | M150-G | XJ |
